Shade Structures Project

Scope of Work/ Specifications

1. Project Inspection and Permitting:

• A non-mandatory pre-bid will be held.
• American Institute of Steel Construction (AISC): Specifications for the design, fabrication, and erection of structural steel.
• The Contractor shall comply in every respect with all applicable laws, regulations, and building and construction codes of the Federal Government, the State of Florida, the County of Santa Rosa, the City of Gulf Breeze, and shall obtain all such occupational licenses and permits as shall be prescribed by law.
• Access to the sites can be obtained by contacting City assigned Project Manager
• City staff can NOT answer questions during site visits about the project. Questions can be addressed to procurement@gulfbreezefl.gov or during the pre-bid meeting.

2. Scope of Services to be Provided:

The following is a general outline of the required basic services. The selected firm shall

perform, at a minimum, the following tasks:

• Field Measurements: Verify layout information for the shade structure(s) shown on the project drawings in relation to the property survey and existing structures, and verify locations by field measurements prior to construction for the shade structures.
• The structures may (depending on design creteria) include the structural steel frame, fabric roof, steel cables, all fasteners, and installation.
• All shade structures are engineered and designed to meet a minimum of 90 mph wind load, Exposure C and live load of 5 lbs/sf2. All shade structures shall be engineered with a zero wind pass-through factor on the fabric.
• The Successful bidder shall provide a 12 month warranty on powder coating and all labor and materials.
• A supplemental warranty from the manufacturer shall be provided for a period of 10 years (pro-rated) on fabric and a minimum of 10 years on the structural integrity of the steel from the date of substantial completion.
• The warranty shall not deprive the Owner of other rights under the provisions of the Contract Documents and will be in addition to and run concurrent with other warranties made by the Contractor under requirements of the Contract Documents.
• Warranty does not cover full cost replacements for State recognized hurricanes or tornadoes. However, Shade replacements will be provided by bidder at costs and normal labor rates. This is for a period of 10 years.

Steel:

1. All steel members of the shade structure shall be designed in strict accordance with the requirements of the "American Institute of Steel Construction" (AISC) Specifications and the "American Iron and Steel Institute" (AISI) Specifications for Cold Formed Members and manufactured in a IAS (International Accreditation Service) accredited facility for Structural Steel Fabrication as per IBC 2009 Section 1704.2.
2. All connections shall have a maximum internal sleeving tolerance of .0625 inches using high tensile strength steel sections with a minimum sleeve length of 6 inches.
3. All non-hollow structural steel members shall comply with ASTM A-36. All hollow structural steel members shall be cold formed, high strength steel and comply with ASTM A-500, Grade C. All steel plates shall comply with ASTM A-572, Grade 50. All galvanized steel tubing shall be triple coated for rust protection using an in-line electro-plating coat process. All galvanized steel tubing shall be internally coated with zinc and organic coatings to prevent corrosion.

Welding :

• All shop-welded connections of the shade structure shall be designed and performed in strict accordance with the requirements of the "American Welding Society" (AWS) Specifications. Structural welds shall be made in compliance with the requirements of the "Prequalified" welded joints where applicable and by certified welders. No onsite or field welding shall be permitted.
• All full penetration welds shall be continuously inspected by an independent inspection agency and shall be tested to the requirement of IBC 2009 and local agency additions and amendments.

Powder Coating:

• Galvanized steel tubing preparation prior to powder coating shall be executed in accordance to solvent cleaning SSPC-SP1. Solvent such as water, mineral spirits, xylol, toluol, which are to be used to remove foreign matter from the surface. A mechanical method prior to solvent cleaning prior to surface preparation shall be executed according to Power Tool Cleaning SSPC-SP3 and utilizing wire brushed abrasive wheels and needle gun,



• Carbon structural steel tubing preparation prior to powder coating shall be executed in accordance to commercial blast cleaning SSPC-SP6 or NACE #3. A commercial blast cleaned surface, when viewed without magnification, shall be free of au visible oil, grease, dirt, mill scale, rust, coating, oxides, corrosion, products and other foreign material.
• Powder coating shall be sufficiently applied, with a minimum three mils thickness and cured at the recommended temperature to provide proper adhesion and stability to meet salt spray and adhesion tests as defined by the American Society of Testing Materials.

Powder used in the powder coat process shall have the following characteristic:

1. Specific Gravity: 1.68 +/- 0.05
2. Theoretical coverage: 114 +/- 4ft2/lb/mil
3. Mass loss during cure: <1%
4. Maximum storage temperature : 75°F

POWDURA ® Super Durable TGIC-Free Polyester provides better exterior durability, UV resistance and gloss retention than standard TGIC powders. Further, it accepts and holds onto electrical charge better and longer than standard TGIC powders, improving transfer efficiency by 10% more. The technology's non-toxic, TGIC-free properties also contribute to making it a greener solution for metal finishers.

Rust Protection Powder under Coat Primer will be required on all structures. POWDURA® Epoxy Powder Coating Z.R. Primer shall be applied in accordance with the manufacturers' specifications. Primer should be fused only and then top coated with the selected powder coat to ensure proper intercoat adhesion.

Tension Cable: Steel cable is determined based on calculated engineering loads.

For light and medium loads, Yi" (nominal) galvanized 7 x 19 strand cable to be used.

Fabric Roof Systems

3. UV shade fabric is made of UV stabilized commercial cloth. Manufactured by system provider made of a UV stabilized high-density polyethylene mesh. Mesh shall be knitted with monofilament and tape yarn filler to ensure that material will not unravel if cut.
4. Fabric Properties:
   1. Life Expectancy: A minimum of 10 years continuous exposure to the sun.
5. Stitching & Thread:
   1. All sewing threads are to be double stitched.
   2. Thread shall be GORE Tenara Sewing Thread manufactured from 100% expanded PTFE (Teflon): mildew resistant exterior approved thread. Thread shall meet or exceed the following:
      • Flexible temperature range
      • Very low shrinkage factor
      • Extremely high strength, durable in outdoor climates
      • Resists flex and abrasion of fabric
      • Unaffected by cleaning agents; acid rain, mildew, salt water and rot resistant, unaffected by most industrial pollutanta
      • Treated for prolonged exposure to the sun
6. Design Criteria:

Base Bid:

Specific project upgrades for Shoreline Multi-Sport Field involve:

• Contractor is responsible for the measurement, purchase, and installation of the Four (4) Shade Structures Fabric Roof System for bleachers.
• Contractor is to use existing Pole /Frame structures on site.
• Shade Fabric color scheme should be Dark Green/Forest Green
• Contractor shall maintain minimum 2% fabric slope
• Attachment A has location of structures in this area

Alternate 1:

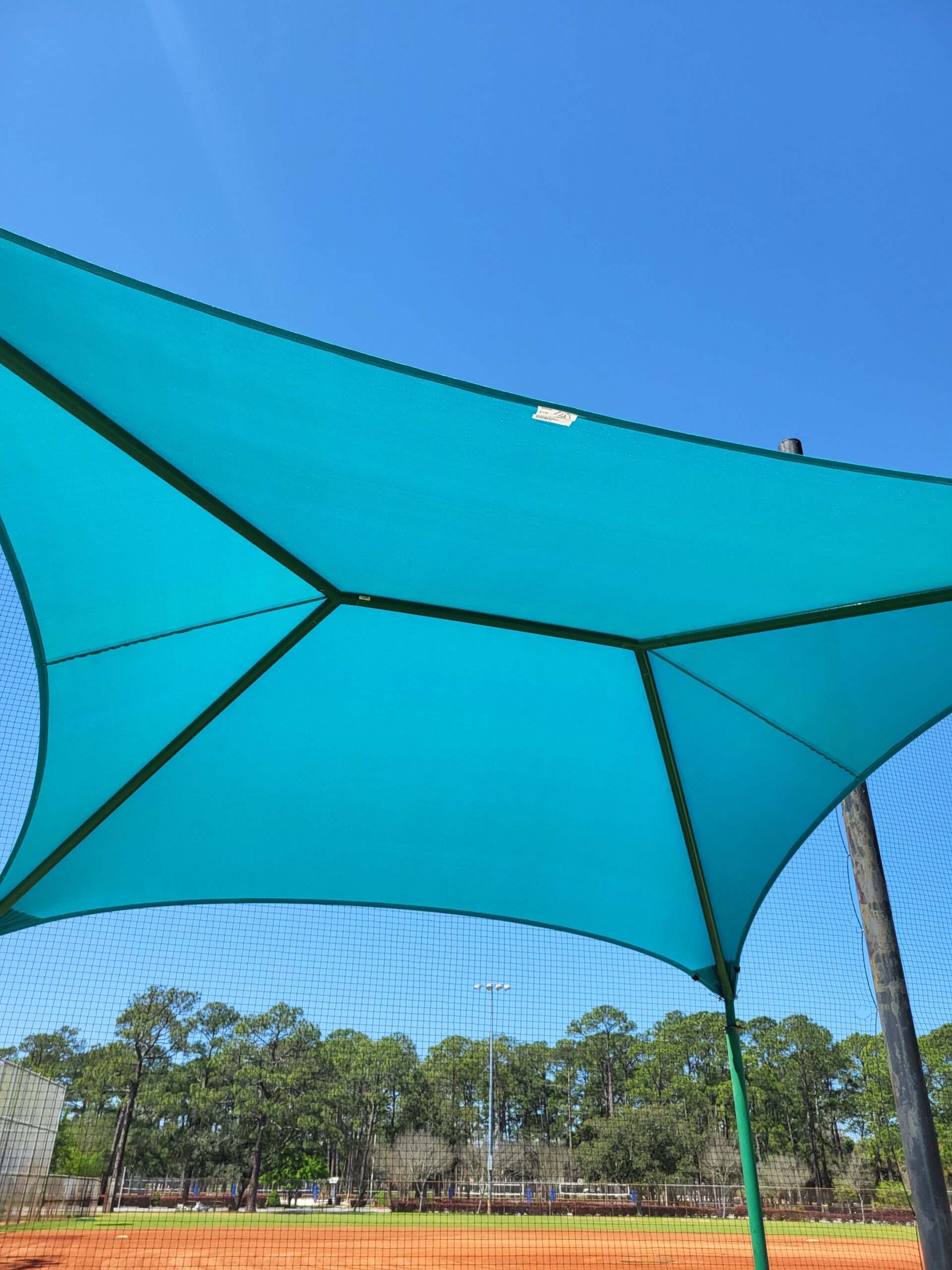

Specific project upgrades for Shoreline Baseball Fields involve:

• Contractor is responsible for the measurement, purchase, and installation of the Fourteen (14) Shade Structures Fabric Roof System for bleachers.
• Contractor is responsible for the measurement, purchase, and installation of the Eighteen (18) Shade Structures Fabric Roof System for Dugouts.
• Contractor is to use existing Pole /Frame structures on site.
• Shade Cover color scheme should be Dark Green/Forest Green
• Contractor shall maintain minimum 2% fabric slope
• Attachment B has location of structures in this area

Alternate 2:

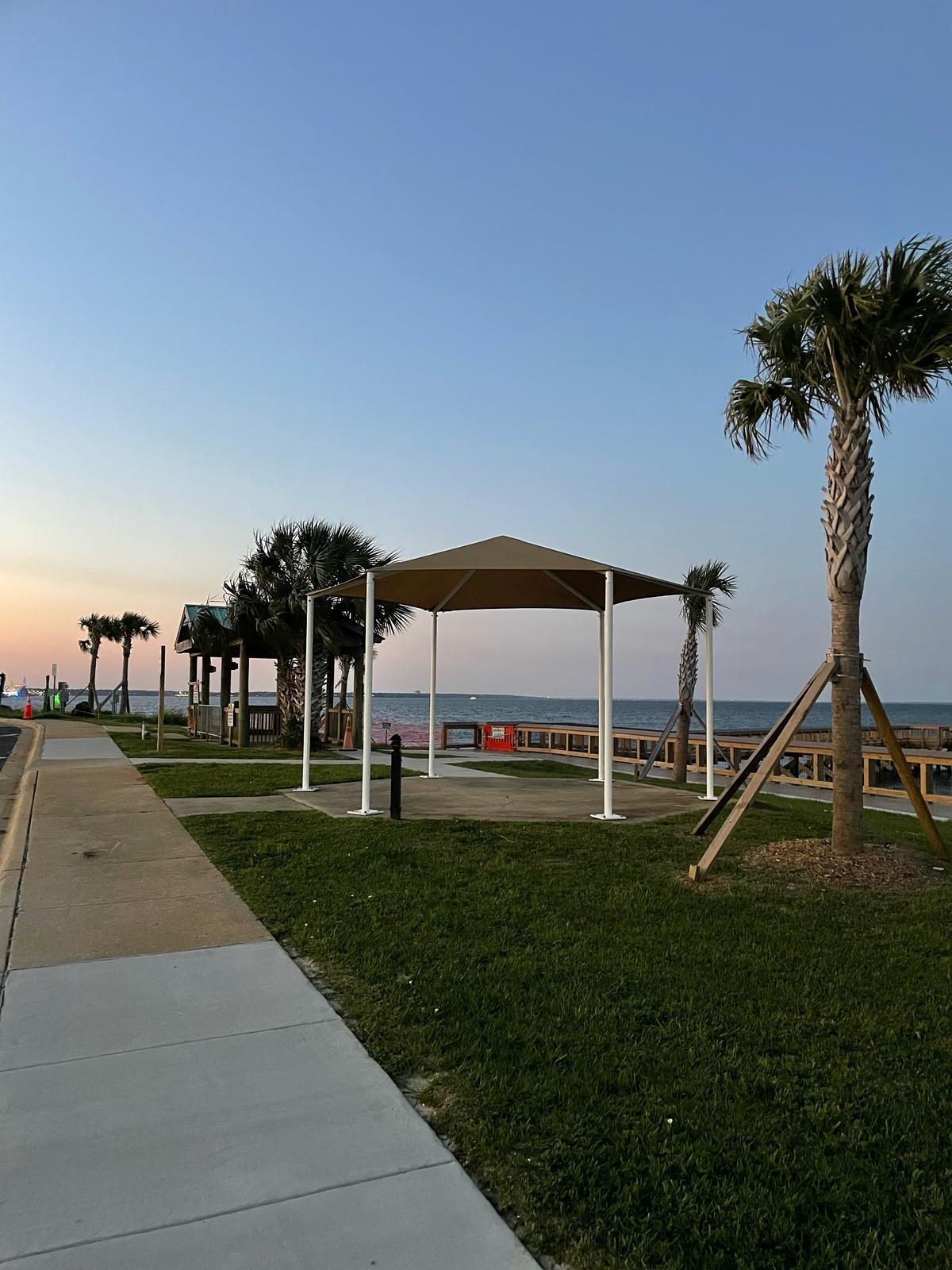

Specific project upgrades for Wayside Park Pavilions involve:

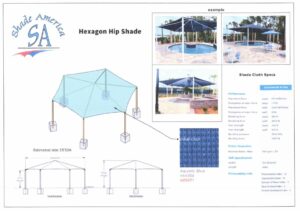

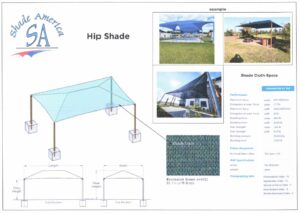

• Contractor is responsible for the design, engineering, and installation of Nine (9) New Shade Structures.
• Shade Structure frame/poles should be white powder coated tubing and octagon in shape.
• Shade Fabric color scheme should be Blue and White Striped.

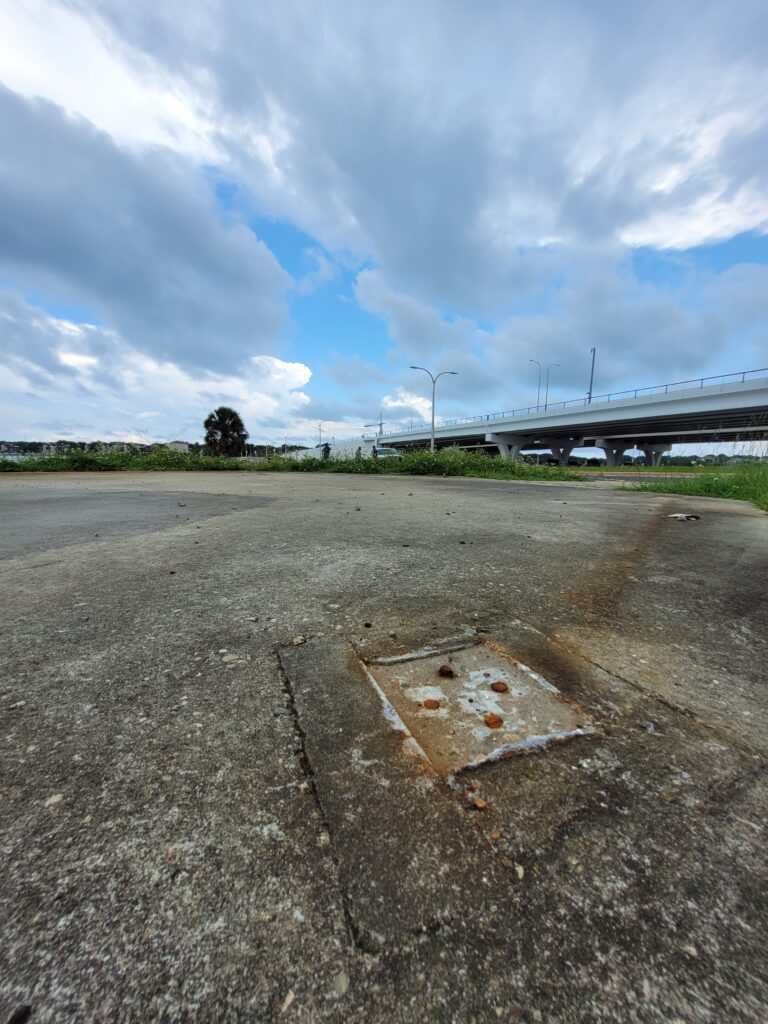

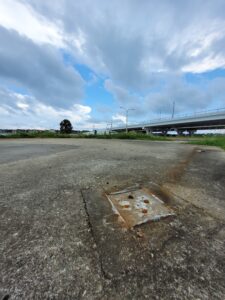

• Existing octagon concrete slaps will remain and be utilized under shade structures
• This area will have a 70’s Retro Themed aesthetic
• Contractor shall maintain minimum 2% fabric slope
• Attachment C has location of structures in this area

General Notes

1. The Contractor shall comply with all applicable local, state, and federal regulations. All construction work shall comply with applicable local, state, and federal codes, rules, or requirements, including but not limited to underground utilities, erosion and sediment control, hazardous material, etc.
2. The Contractor is required to visit the site and note the existing conditions prior to bidding.
3. The Contractor must notify the City at least 72 hours prior to commencement of construction. Daytime work hours for the City of Gulf Breeze are Monday through Friday, 7 AM to 9 PM, and Saturday and Sunday, 8 AM to 9 PM. The City must approve weekend work.
4. The Contractor is responsible for all damages to any utilities caused as a result of construction activities.
5. The Contractor shall limit construction activities to the designated area and is liable for all damage to and restoration of all areas within the project.
6. The Contractor is responsible for repairing damages caused by construction activities to existing features, including but not limited to fences, storm drains, driveways, sidewalks, mailboxes, landscaping, sprinklers, or any disturbed private property. The Contractor is responsible for immediately notifying the City of damage to private property.
7. The Contractor is responsible for preventing the unauthorized access or use of completed work, equipment, and material.
8. The Contractor is responsible for maintenance of traffic during construction activities, including but not limited to preserving a safe environment for pedestrians, cyclists, motorists, etc.; preventing pedestrians and vehicles from conflicting with construction; and taking necessary precautions during morning and afternoon hours to ensure a safe environment for children, school students, and school buses.
9. The Contractor shall not remove or trim any trees or vegetation without approval from the City of Gulf Breeze.
10. The Contractor is responsible for maintaining satisfactory conditions of the construction area, including but not limited to removing debris, clean-up fuel or chemical spills, and disposal of garbage, plastic bottles, food wrappers, cigarette butts, or other litter resulting from construction activities.
11. The City will conduct routine inspections of the construction site. The Contractor must notify the City at least 48 hours prior to the time any inspection is required and after each phase of work. No final testing will be accepted unless witnessed by the City or its representative.
